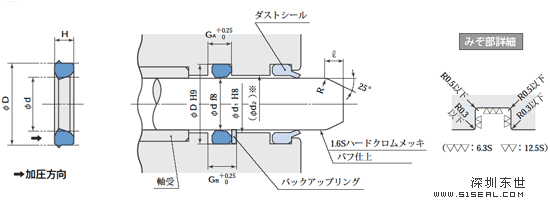

型號(hào)明細(xì)		密封件的公稱尺寸及腔體尺寸 (単位：mm）
標(biāo)準(zhǔn)（RN906)	適用（PT111)	D	d	H	GA	GB	D1	D2	L
*HSD-20	*TCS-20×14	20	14	1.9	2.4	4.4	19.5	19	1.5
*HSD-25	*TCS-25×17	25	17	2.6	3.2	5.2	24.5	24	2
*HSD-30	*TCS-30×22	30	22	2.6	3.2	5.2	29.5	29	2
*HSD-32	*TCS-32×24	32	24	2.6	3.2	5.2	31.5	30.5	2
*HSD-35	*TCS-35×27	35	27	2.6	3.2	5.2	34.5	33.5	2
*HSD-40	TCS-40×32	40	32	2.6	3.2	5.2	39.5	38.5	2
*HSD-40A	TCS-40×30	40	30	3.4	4	7	39.5	38.5	2.5
*HSD-45	TCS-45×35	45	35	3.4	4	7	44.5	43.5	2.5
*HSD-50	TCS-50×40	50	40	3.4	4	7	49.5	48.5	2.5
*HSD-55	TCS-55×45	55	45	3.4	4	7	54.4	53	2.5
*HSD-60	TCS-60×50	60	50	3.4	4	7	59.4	58	2.5
*HSD-63	TCS-63×53	63	53	3.4	4	7	62.4	61	2.5
*HSD-65	TCS-65×55	65	55	3.4	4	7	64.4	63	2.5
*HSD-70	*TCS-70×55	70	55	5.2	6	10	69.4	68	3
*HSD-80	*TCS-80×65	80	65	5.2	6	10	79.4	78	3
*HSD-90	*TCS-90×75	90	75	5.2	6	10	89.4	88	3
*HSD-100	TCS-100×85	100	85	5.2	6	10	99.4	98	3
